If you’ve ever worked on a frontend team, you know the drill: the design system in Figma looks pristine, but the moment it hits the codebase, things start to drift. Tokens get renamed, spacing gets eyeballed in the browser, and before you know it, your single source of truth has completely splintered.

For our client Able’s design system, we got tired of this inevitable gravity. We wanted to go from design to code without the gap. So, we built a continuous, bi-directional workflow between Figma and our production HTML using Claude Code’s MCP toolchain.

Here is exactly how we automated the translation layer and killed the manual handoff for good.

The Problem: When Truth Divides

The traditional handoff process is where consistency goes to die. We were constantly running into three major roadblocks:

• Token divergence: Beautifully semantic Figma variables (like color/cta/default) were being translated into raw hex codes by the time they hit the CSS, entirely breaking the semantic link.
• The "eyeball" effect: Instead of using our token scale, developers were measuring padding manually, introducing subtle inconsistencies across every component.
• Zero validation: We had no structured loop to compare the final coded output against the original Figma frame until user testing.

The 5-Step Autonomous Workflow

To fix this, we set up a pipeline where Claude handles the reading, reasoning, writing, validating, and pushing - all inside a single conversation.

Here is the step-by-step breakdown:

1. Get the Design Context

We simply pass the Figma URL to Claude. Claude extracts the node ID and calls get_design_context to pull the full spec: layout rules, spacing, fills, typography, and a suggested code scaffold. It also runs get_screenshot in parallel to establish a visual ground truth.

2. Map the Tokens

Figma variable names map directly to our CSS custom properties. Claude uses the get_variable_defs tool to resolve any unknown variables into hex values before writing a single line of code.

3. Build Production HTML

Next, Claude writes self-contained HTML with the CSS housed in a <style> tag. The strict rule here is zero hardcoded values - every single value must use a var(--token) reference.

4. The Visual Validation Loop

We don't just trust the generated code; we verify it.

• Claude starts a local preview server.
• It uses the figma_capture_screenshot plugin tool to grab the live state of the Figma node (avoiding the stale REST API cache).
• It captures the rendered HTML using preview_screenshot.
• It compares the two, iterating up to 3 times to self-correct spacing, proportions, and alignment.

5. Push Back to Figma

Once the HTML is validated, Claude uses the import-html tool to push the component fragment directly back onto the Figma canvas. Both the codebase and the design artifact remain perfectly in sync as live references.

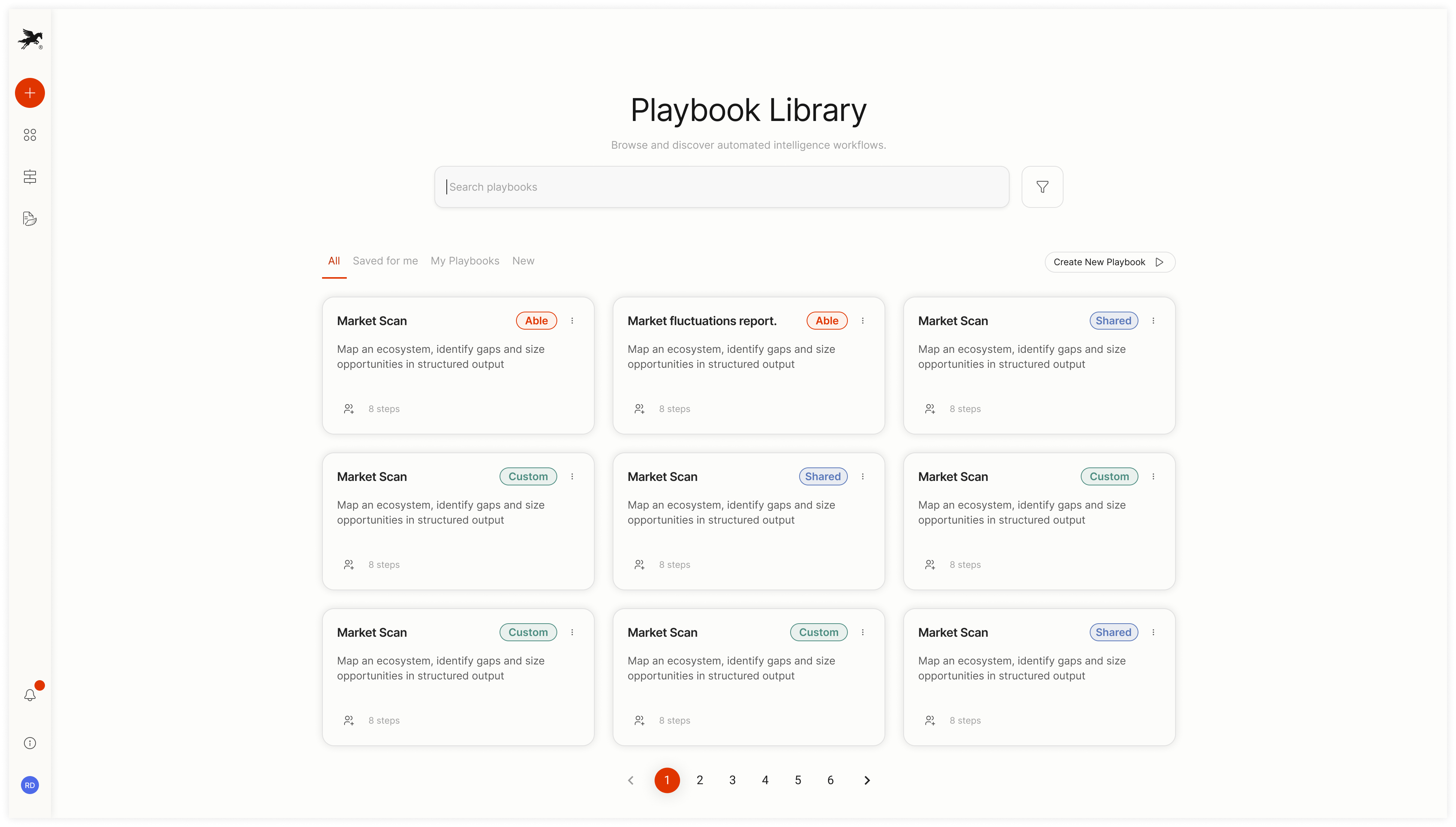

Every component built through this workflow.

Each of the components below was translated directly from a Figma node using the five-step workflow. Every value references the shared token system - no hardcoded properties anywhere.

The Secret Sauce: One Vocabulary

The reason this works so seamlessly is our strict 1:1 token mapping. A Figma variable like spacing/7 maps exactly to the CSS property --spacing-7 (which resolves to 24px).

To keep Claude from drifting, we maintain the entire token table inside a CLAUDE.md project memory file. Because this file is auto-loaded at the start of every session, Claude reads the vocabulary before writing any code, ensuring absolute consistency.

The Results

The outcomes of this continuous sync were immediate and highly measurable:

• 8 production files shipped in a single session each (including dashboards and feature pages).
• Zero hardcoded values across all output files.
• Perfect convergence within a maximum of 3 validation iterations.
• The code acts as the documentation, eliminating the need for separate Storybook or Zeplin instances.

By letting Claude act as the translator, we finally closed the loop. Figma has the design intent, the codebase has the production output, and they are both pointing at the exact same truth.
